Description
APPLICATION: Frame mounted RV/Motorhome propane tank
This tank CAN be permanently mounted to a frame and remotely filled!
Propane Capacity: 20.3 Gallons
Length Overall: 27″
Diameter: 16″
Weight: 78lbs
NOTE: ASME CERTIFIED, does not require re-certification

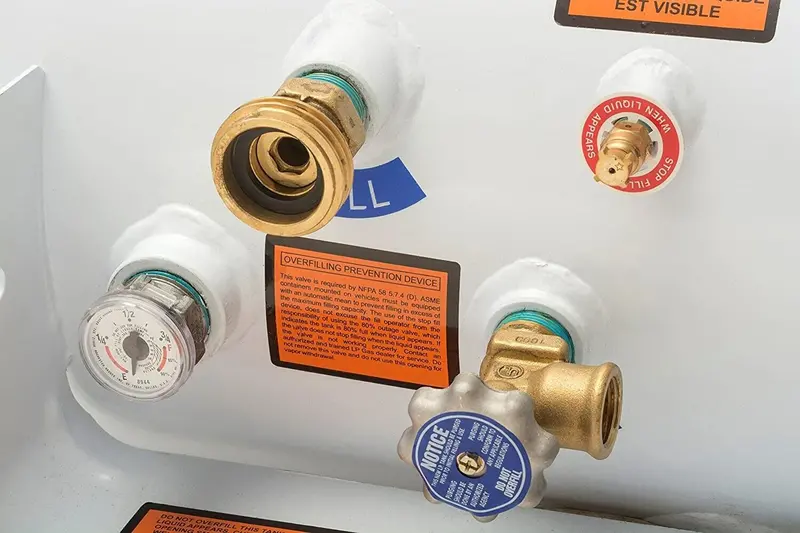

Fill valve, relief valve and level gauge installed
High grade steel welded construction, powder coated for long lasting exterior protection
X-ray and hydro-static tested
L x W x H – 27 x 16 x 16 – 78 lb
The distance from one set of holes to the other is just over 25″.
On each end bracket there are 3 holes.
The width of the bracket is 8”.
The center of each hole is at ¾”, 4″, 7 ¼ ” (see image)
–
Feel free to ask us about conversion kits for almost anything including trucks, cars, generators, tractors, boats, motorcycles, RVs etc. We can build a kit to convert almost any engine!
